Forside / Butik / Nor1545 Støjovervågningsterminal
Kategori: Måling af udendørsstøj

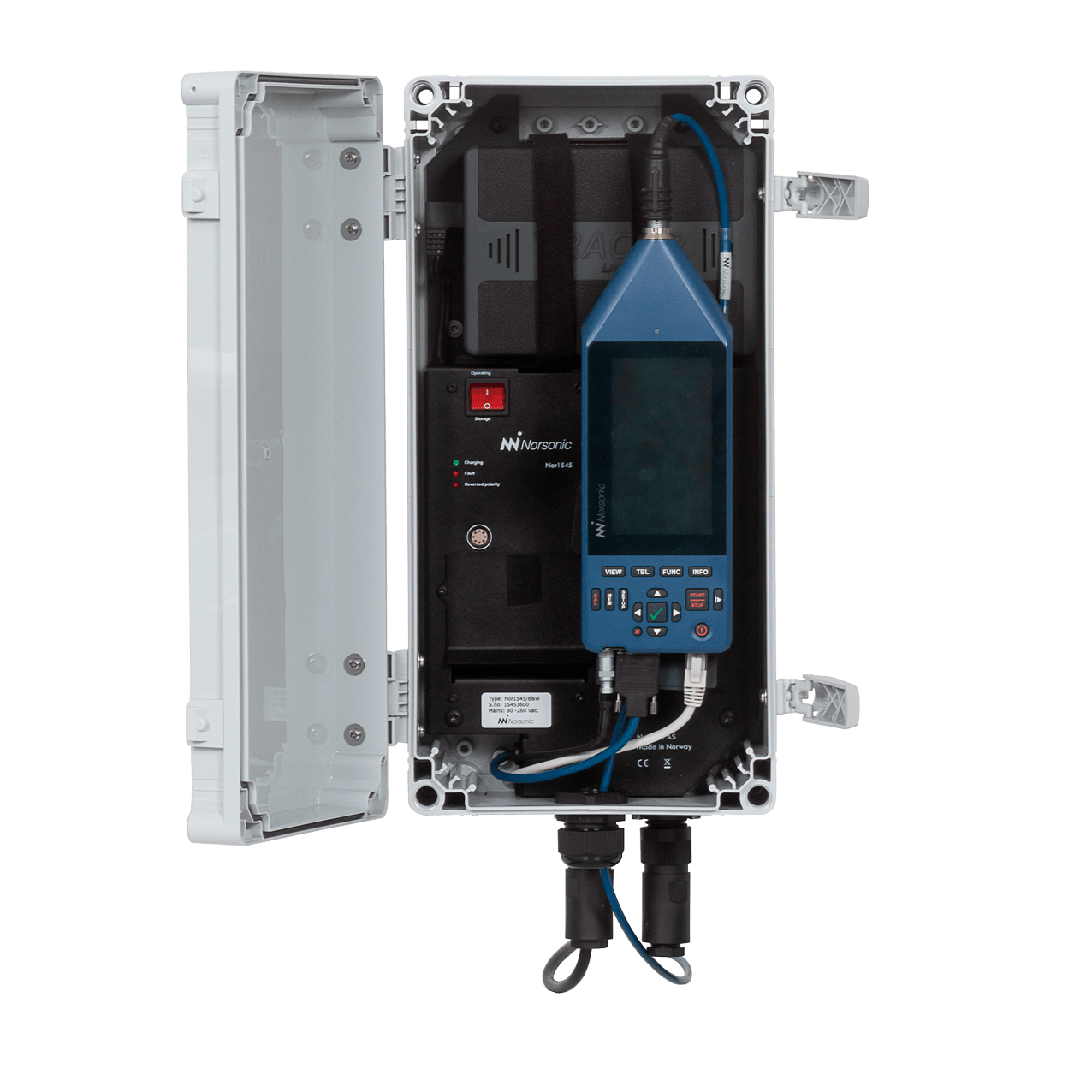

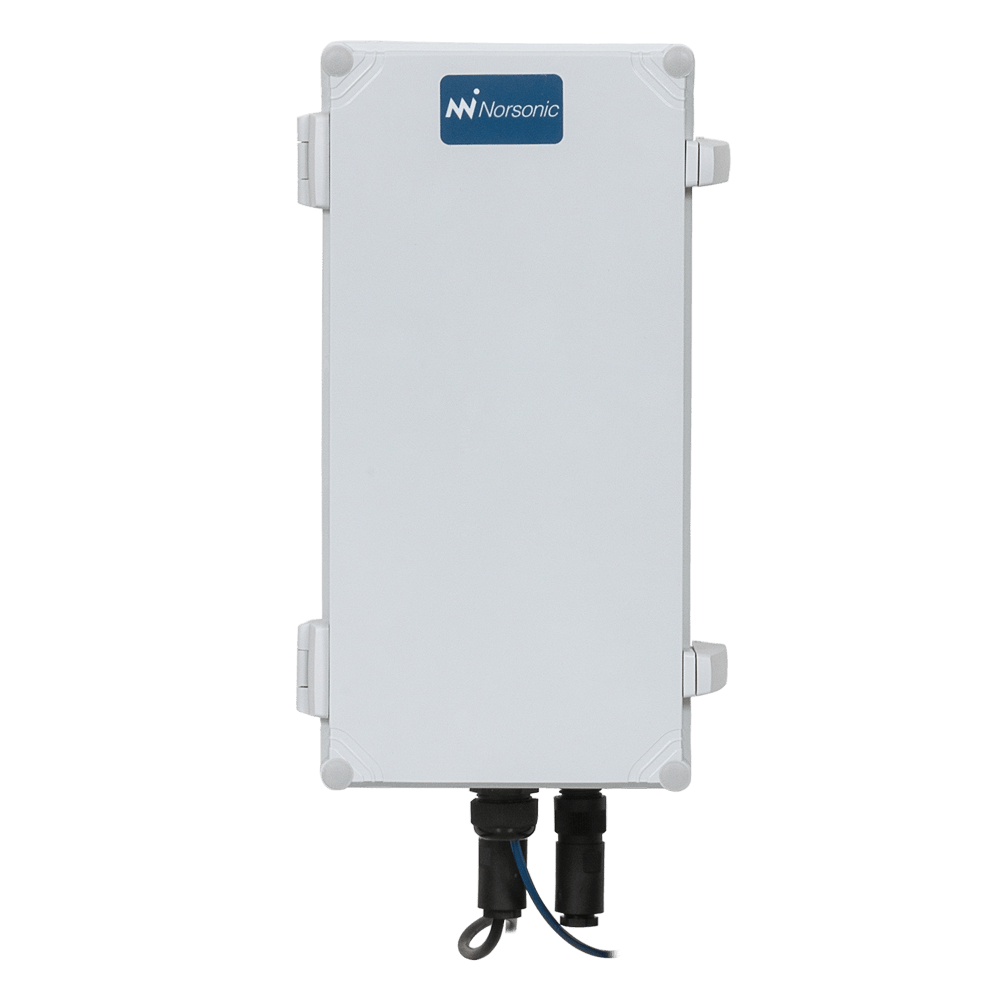

Nor1545 Støjovervågningsterminal

Anmod om info/pris

Nor1545 støjovervågningsterminalen er en robust, effektiv løsning til din udendørs støjovervågning. Udstyret med den avancerede lydniveaumåler Nor145, der hoster den nyeste generation af kommunikationsteknologi, kan støjdata overføres pålideligt og sikkert til dit kontor.

Systemet kan være en stand-alone støjovervågningsterminal eller administreret og overvåget af NorCloud .

Med NorReview kan du udføre yderligere dybdegående analyser af dine støjdata kombineret med støjkompasset og vejrdata.

Relaterede varer

  • Måling af udendørsstøj

    NorCloud – støjovervågningssystem

    Læs mere Vis detaljer
  • Måling af udendørsstøj, Software

    Nor1026 NorReview

    Læs mere Vis detaljer

Ansøgninger

  • Miljømæssige
  • Industriel
  • Lufthavne
  • Racerbaner

Højdepunkter

  • Understøttelse af Noise Compass.
  • Støtte fra Theies Clima US vejrstation.

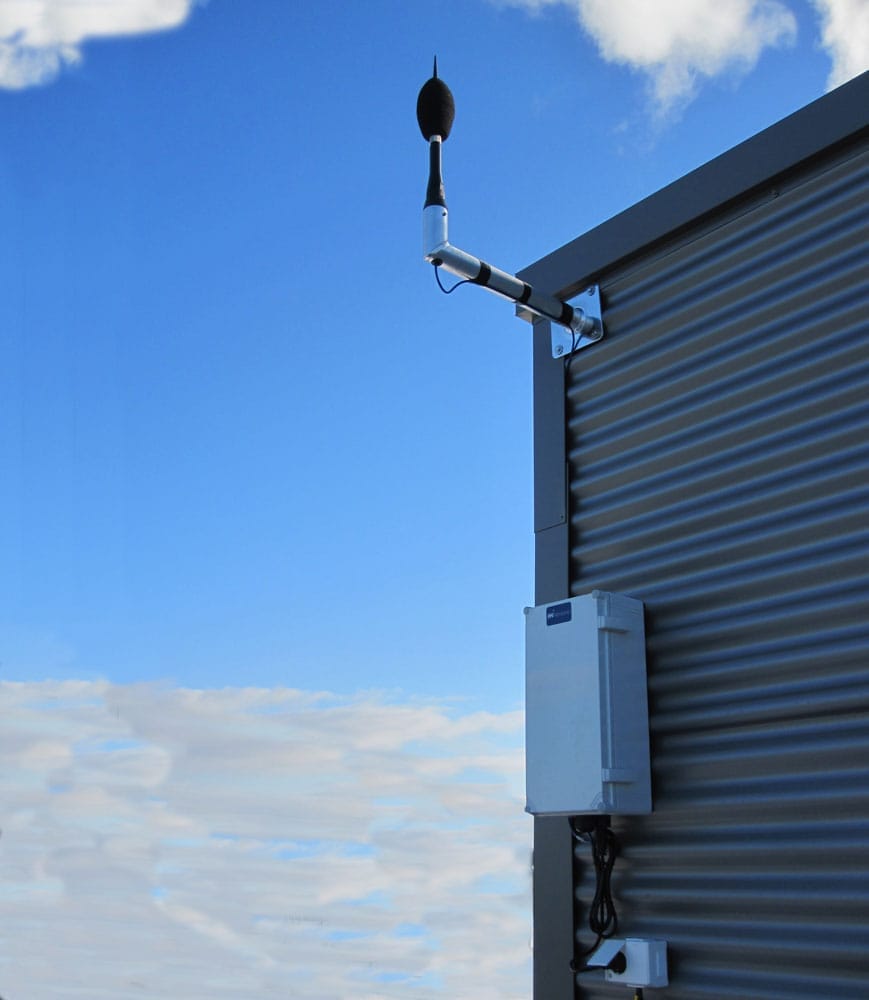

  • Kan monteres direkte på en væg.

Funktioner

text
    • Se og administrer dine støjdata online ved hjælp af NorCloud.
    • Lyt til optagede begivenheder.
    • Automatisk rapportering.
    • Støjkildeplacering ved hjælp af Norsonic støjkompas.
    • Understøttelse af vejrdata.
    • Understøttelse af IP-kamera.
    • Data gemt lokalt på SD-kort og i NorCloud for fuld redundans.
    • Kablet (LAN) eller trådløs (WIFI/UMTS/LTE/3G/4G).
    • Indbygget GPS.
    • Få besked via e-mail eller SMS, når de fastsatte grænser er nået.
    • Hændelsesudløser optagelse af lyd og/eller at tage et billede.
    • Fem triggere understøttes samtidig.
    • Systemalarmer genereres med strømsvigt, lavt batteri osv. Meddelelse sendes via e-mail.
    • Afbrydelsesfri skift mellem lysnet, ekstern 12V, Solpanel og internt 12V batteri.

Specifikationer

text

Cabinet construction / material: High pressure molded fiberglass-reinforced
Weight Nor1545 (including Nor145): 3,3 Kg
Nor1545/B (including internal battery and Nor145): 5,1 kg
Option 2, set of mast mounting brackets: 650 g
Option 3, set of table top feet: 950 g
Size (WxDxH): 200x132x400 mm
Enclosure class: IP66 (IP 67 with extra sealant added in the cable gland)
Flammability rating (enclosure): UL746C 5 inch flame test.
Operational temperature: –20 to 50 °C
Recommended storage temperature: 10 to 30 °C
Temperature range for battery charge: 0 to 40 °C
Wall mounting: 4x M5 or M6 screws in a 180 x 380 mm pattern

Electrical:
Mains: 88 to 264 Vac (47-63Hz) / 125 – 373 VDC
12V input: 9-28Vdc
Support for Solar panel
Power consumption (typical): 3,5W

Nor1545/145-16

text

Nor145 with opt 1,12 and 16, Nor1216 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545 .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Nor1545/145-17

text

Nor145 with opt 1,12 and 16, Nor1217 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545 .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Nor1545/B145-16

text

Nor145 with opt 1,12 and 16, Nor1216 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545/B .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Battery not included.

Support for Noise Compass Nor1297 and weather station Thies Clima US.

Nor1545/B145-17

text

Nor145 with opt 1,12 and 16, Nor1217 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545/B.

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Battery not included.

Support for Noise Compass Nor1297 and weather station Thies Clima US.

Downloads

text
Brochurer

Product range catalogue

  • Product range catalogue - English - 2025-2026

    Norsonic_productrange-2025-2026.pdf (7617.25KB)
    Released
    Download
  • Catálogo de productos - Español -

    Norsonic_product_catalogue_Spanish.pdf (0.01GB)
    Released
    Download
